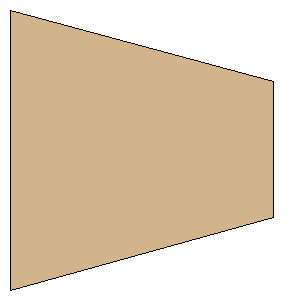

Polecat Aerospace Nike Smoke (10 Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 14.0900 inches (357.8860 mm) | | Tip Chord: | 6.8180 inches (173.1772 mm) | | Sweep Distance: | 3.6120 inches (91.7448 mm) | | SemiSpan: | 13.2500 inches (336.5500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (336.5500 mm, 91.7448 mm) | | Point 3: | (336.5500 mm, 264.9220 mm) | | Point 4: | (0.0000 mm, 357.8860 mm) | | Width: | 13.2500 inches (336.5500 mm) | | Height: | 14.0900 inches (357.8860 mm) |
