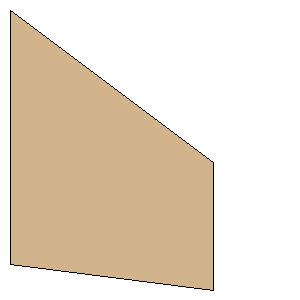

Ana Cana Puna Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 2.0000 inches (50.8000 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 1.2002 inches (30.4851 mm) | | SemiSpan: | 1.6000 inches (40.6400 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (40.6400 mm, 30.4851 mm) | | Point 3: | (40.6400 mm, 55.8851 mm) | | Point 4: | (0.0000 mm, 50.8000 mm) | | Width: | 1.6000 inches (40.6400 mm) | | Height: | 2.2002 inches (55.8851 mm) |
