Rocketry Parts Database >> Fins >>

Pem - Tech Space Ark Trapezoid F Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:1/8 Aircraft Plywood

Download as PDF

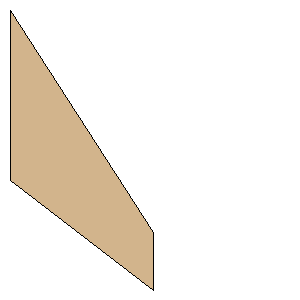

Root Chord:2.3750 inches (60.3250 mm)
Tip Chord:0.8000 inches (20.3200 mm)
Sweep Distance:3.0945 inches (78.6003 mm)
SemiSpan:2.0000 inches (50.8000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(50.8000 mm, 78.6003 mm)
Point 3:(50.8000 mm, 98.9203 mm)
Point 4:(0.0000 mm, 60.3250 mm)
Width:2.0000 inches (50.8000 mm)
Height:3.8945 inches (98.9203 mm)
