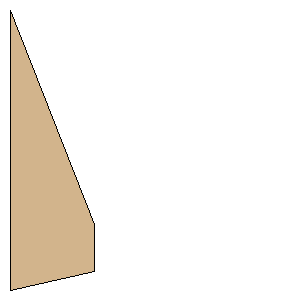

binder_design_aspire_29mm.rkt Tr Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 7.5000 inches (190.5000 mm) | | Tip Chord: | 1.2500 inches (31.7500 mm) | | Sweep Distance: | 5.7500 inches (146.0500 mm) | | SemiSpan: | 2.2500 inches (57.1500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (57.1500 mm, 146.0500 mm) | | Point 3: | (57.1500 mm, 177.8000 mm) | | Point 4: | (0.0000 mm, 190.5000 mm) | | Width: | 2.2500 inches (57.1500 mm) | | Height: | 7.5000 inches (190.5000 mm) |
