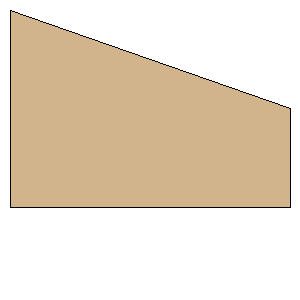

SA-5 Gammon Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 1.5000 inches (38.1000 mm) | | SemiSpan: | 4.2500 inches (107.9500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (107.9500 mm, 38.1000 mm) | | Point 3: | (107.9500 mm, 76.2000 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 4.2500 inches (107.9500 mm) | | Height: | 3.0000 inches (76.2000 mm) |
