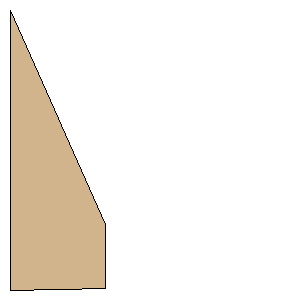

Ana Cana Puna Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 1.7500 inches (44.4500 mm) | | Tip Chord: | 0.4000 inches (10.1600 mm) | | Sweep Distance: | 1.3397 inches (34.0284 mm) | | SemiSpan: | 0.6000 inches (15.2400 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (15.2400 mm, 34.0284 mm) | | Point 3: | (15.2400 mm, 44.1884 mm) | | Point 4: | (0.0000 mm, 44.4500 mm) | | Width: | 0.6000 inches (15.2400 mm) | | Height: | 1.7500 inches (44.4500 mm) |
