Rocketry Parts Database >> Fins >>

scratch_liddle_v2.rkt Freeform F Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:1/8 Aircraft Plywood

Download as PDF

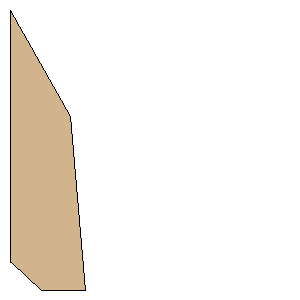

Point 1:(0.0000 mm, 166.0704 mm)
Point 2:(0.4265 mm, 166.0704 mm)
Point 3:(1.0387 mm, 166.0704 mm)
Point 4:(20.9492 mm, 183.9500 mm)
Point 5:(49.7404 mm, 183.9500 mm)
Point 6:(39.9391 mm, 70.0103 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:6.5382 inches (166.0704 mm)
Height:7.2421 inches (183.9500 mm)
