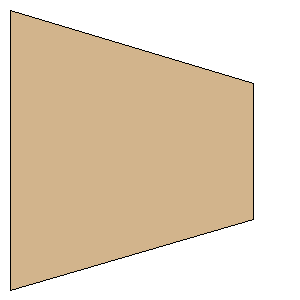

Polecat Aerospace Nike Smoke (5. Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 7.7500 inches (196.8500 mm) | | Tip Chord: | 3.7500 inches (95.2500 mm) | | Sweep Distance: | 2.0476 inches (52.0090 mm) | | SemiSpan: | 6.7500 inches (171.4500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (171.4500 mm, 52.0090 mm) | | Point 3: | (171.4500 mm, 147.2590 mm) | | Point 4: | (0.0000 mm, 196.8500 mm) | | Width: | 6.7500 inches (171.4500 mm) | | Height: | 7.7500 inches (196.8500 mm) |
