Rocketry Parts Database >> Fins >>

ASM 3in.rkt Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:1/8 in. Aircraft Plywood

Download as PDF

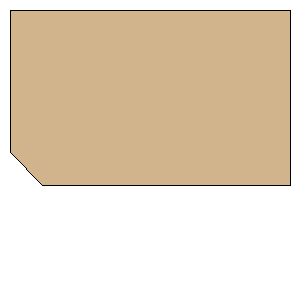

Point 1:(0.0000 mm, 82.5500 mm)
Point 2:(19.0500 mm, 101.6000 mm)
Point 3:(161.9250 mm, 101.6000 mm)
Point 4:(161.9250 mm, 0.0000 mm)
Point 5:(0.0000 mm, 0.0000 mm)
Width:6.3750 inches (161.9250 mm)
Height:4.0000 inches (101.6000 mm)
