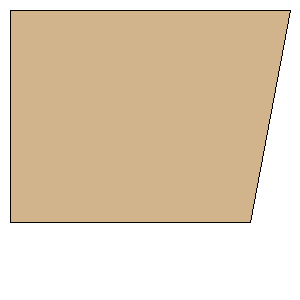

ASM 3in.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 in. Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 60.3250 mm) | | Point 2: | (68.2625 mm, 60.3250 mm) | | Point 3: | (79.3750 mm, 0.0000 mm) | | Point 4: | (0.0000 mm, 0.0000 mm) | | Width: | 3.1250 inches (79.3750 mm) | | Height: | 2.3750 inches (60.3250 mm) |
