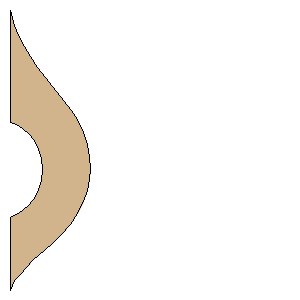

Lunar Eclipse (Final).rkt Freefo Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:1/8 in Birch Plywood (Revell)

Download as PDF

Point 1:(0.0000 mm, 88.9000 mm)
Point 2:(5.5563 mm, 91.2813 mm)
Point 3:(10.3188 mm, 94.4563 mm)
Point 4:(15.0813 mm, 98.4250 mm)
Point 5:(19.0500 mm, 103.1875 mm)
Point 6:(22.2250 mm, 108.7438 mm)
Point 7:(25.4000 mm, 118.2688 mm)
Point 8:(26.1938 mm, 127.0000 mm)
Point 9:(25.4000 mm, 135.7313 mm)
Point 10:(22.2250 mm, 145.2563 mm)
Point 11:(19.0500 mm, 150.8125 mm)
Point 12:(15.0813 mm, 155.5750 mm)
Point 13:(10.3188 mm, 159.5438 mm)
Point 14:(5.5563 mm, 162.7188 mm)
Point 15:(0.0000 mm, 165.1000 mm)
Point 16:(0.0000 mm, 222.2501 mm)
Point 17:(3.9688 mm, 215.1063 mm)
Point 18:(7.9375 mm, 209.5501 mm)
Point 19:(12.7000 mm, 203.9938 mm)
Point 20:(19.0500 mm, 198.4375 mm)
Point 21:(27.7813 mm, 191.2938 mm)
Point 22:(34.9250 mm, 184.9438 mm)
Point 23:(41.2750 mm, 178.5938 mm)
Point 24:(48.4188 mm, 170.6563 mm)
Point 25:(53.9750 mm, 161.9250 mm)
Point 26:(58.7375 mm, 152.4000 mm)
Point 27:(61.9125 mm, 143.6688 mm)
Point 28:(63.5000 mm, 134.9375 mm)
Point 29:(64.2938 mm, 127.0000 mm)
Point 30:(63.5000 mm, 117.4750 mm)
Point 31:(61.9125 mm, 107.1563 mm)
Point 32:(58.7375 mm, 97.6313 mm)
Point 33:(54.7688 mm, 88.9000 mm)
Point 34:(50.8000 mm, 82.5500 mm)
Point 35:(46.0375 mm, 76.2000 mm)
Point 36:(40.4813 mm, 69.0563 mm)
Point 37:(34.1313 mm, 61.1188 mm)
Point 38:(28.5750 mm, 53.9750 mm)
Point 39:(22.2250 mm, 46.0375 mm)
Point 40:(16.6688 mm, 37.3063 mm)
Point 41:(11.9063 mm, 29.3688 mm)
Point 42:(7.1438 mm, 20.6375 mm)
Point 43:(3.9688 mm, 12.7000 mm)
Point 44:(0.0000 mm, 0.0000 mm)
Width:3.5000 inches (88.9000 mm)
Height:8.7500 inches (222.2501 mm)
