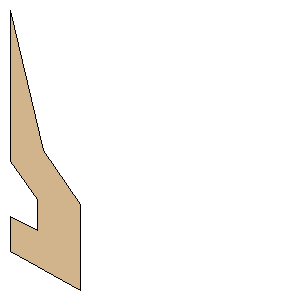

3D Rocketry Ion Challenger 3D Fr Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 in Birch Plywood (Revell) |
Download as PDF | Point 1: | (0.0000 mm, 123.8250 mm) | | Point 2: | (22.2250 mm, 154.7813 mm) | | Point 3: | (22.2250 mm, 180.1813 mm) | | Point 4: | (0.0000 mm, 168.2750 mm) | | Point 5: | (0.0000 mm, 196.8500 mm) | | Point 6: | (57.1500 mm, 228.6000 mm) | | Point 7: | (57.1500 mm, 158.7500 mm) | | Point 8: | (26.9875 mm, 114.3000 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 4.8750 inches (123.8250 mm) | | Height: | 9.0000 inches (228.6000 mm) |
