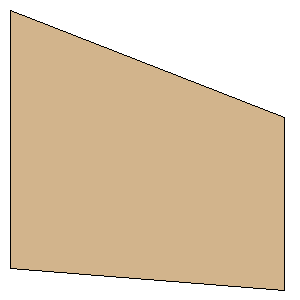

Resistor 224 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 3/16 Aircraft Plywood |
Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 1.2500 inches (31.7500 mm) | | SemiSpan: | 3.1875 inches (80.9625 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (80.9625 mm, 31.7500 mm) | | Point 3: | (80.9625 mm, 82.5500 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 3.1875 inches (80.9625 mm) | | Height: | 3.2500 inches (82.5500 mm) |
