Rocketry Parts Database >> Fins >>

Custom Aircraft plywood (Birch) Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

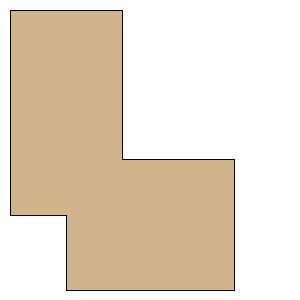

Point 1:(0.0000 mm, 558.8000 mm)
Point 2:(152.4000 mm, 558.8000 mm)
Point 3:(152.4000 mm, 762.0000 mm)
Point 4:(609.6000 mm, 762.0000 mm)
Point 5:(609.6000 mm, 406.4000 mm)
Point 6:(304.8000 mm, 406.4000 mm)
Point 7:(304.8000 mm, 0.0000 mm)
Point 8:(0.0000 mm, 0.0000 mm)
Width:24.0000 inches (609.6000 mm)
Height:30.0000 inches (762.0000 mm)
