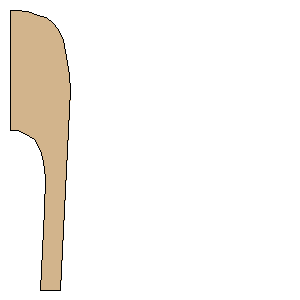

Mars or Bust Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 76.2000 mm) | | Point 2: | (5.2713 mm, 76.5430 mm) | | Point 3: | (10.5537 mm, 78.9955 mm) | | Point 4: | (15.4588 mm, 82.3913 mm) | | Point 5: | (19.2319 mm, 88.9943 mm) | | Point 6: | (21.3071 mm, 96.3519 mm) | | Point 7: | (22.2504 mm, 106.9167 mm) | | Point 8: | (21.5900 mm, 127.0000 mm) | | Point 9: | (20.3200 mm, 152.4000 mm) | | Point 10: | (19.0500 mm, 177.8000 mm) | | Point 11: | (31.7500 mm, 177.8000 mm) | | Point 12: | (33.0200 mm, 152.4000 mm) | | Point 13: | (34.2900 mm, 127.0000 mm) | | Point 14: | (35.5600 mm, 101.6000 mm) | | Point 15: | (36.8300 mm, 76.2000 mm) | | Point 16: | (38.1000 mm, 50.8000 mm) | | Point 17: | (37.5805 mm, 41.3023 mm) | | Point 18: | (36.6383 mm, 33.3880 mm) | | Point 19: | (35.5077 mm, 26.4159 mm) | | Point 20: | (34.0002 mm, 19.2554 mm) | | Point 21: | (31.6833 mm, 13.3430 mm) | | Point 22: | (27.7215 mm, 8.4379 mm) | | Point 23: | (23.0710 mm, 4.9343 mm) | | Point 24: | (17.9833 mm, 3.2384 mm) | | Point 25: | (11.3880 mm, 1.1656 mm) | | Point 26: | (4.9812 mm, 0.2234 mm) | | Point 27: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 7.0000 inches (177.8000 mm) |
