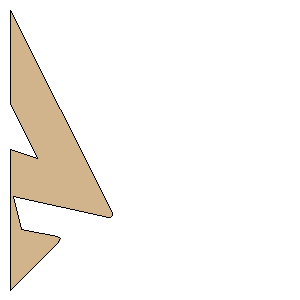

FS2-2.26in (Final).rkt Freeform Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 63.5000 mm) | | Point 2: | (19.0500 mm, 100.9650 mm) | | Point 3: | (0.0000 mm, 95.2500 mm) | | Point 4: | (0.0000 mm, 190.5000 mm) | | Point 5: | (33.0200 mm, 158.1150 mm) | | Point 6: | (34.2900 mm, 155.5750 mm) | | Point 7: | (32.3850 mm, 154.3050 mm) | | Point 8: | (7.6200 mm, 149.2250 mm) | | Point 9: | (2.5400 mm, 127.0000 mm) | | Point 10: | (67.3100 mm, 140.9700 mm) | | Point 11: | (68.5800 mm, 140.9700 mm) | | Point 12: | (69.8500 mm, 139.7000 mm) | | Point 13: | (69.8500 mm, 138.4300 mm) | | Point 14: | (68.5800 mm, 135.2550 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 7.5000 inches (190.5000 mm) |
