Rocketry Parts Database >> Fins >>

Cougar 660 Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

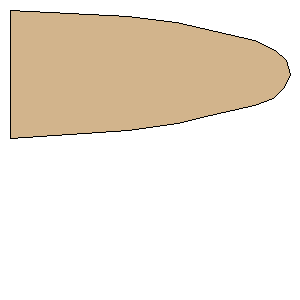

Point 1:(0.0000 mm, 19.1257 mm)
Point 2:(17.6920 mm, 18.0000 mm)
Point 3:(25.0312 mm, 17.0000 mm)
Point 4:(29.9406 mm, 15.8110 mm)
Point 5:(36.5086 mm, 14.2000 mm)
Point 6:(39.3160 mm, 13.1644 mm)
Point 7:(41.0570 mm, 11.6164 mm)
Point 8:(41.8310 mm, 9.6815 mm)
Point 9:(41.2510 mm, 7.5530 mm)
Point 10:(39.7030 mm, 6.0051 mm)
Point 11:(36.5086 mm, 4.5000 mm)
Point 12:(24.8380 mm, 1.9370 mm)
Point 13:(17.6920 mm, 1.0000 mm)
Point 14:(0.0000 mm, 0.0000 mm)
Width:1.6469 inches (41.8310 mm)
Height:0.7530 inches (19.1257 mm)
