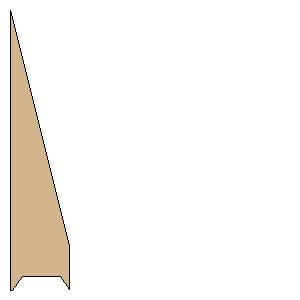

MCR Hawk - Copyright 2006 All Ri Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 368.3000 mm) | | Point 2: | (3.1750 mm, 368.3000 mm) | | Point 3: | (15.8750 mm, 350.5200 mm) | | Point 4: | (66.0400 mm, 350.5200 mm) | | Point 5: | (78.7400 mm, 367.0300 mm) | | Point 6: | (78.7400 mm, 309.8800 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 14.5000 inches (368.3000 mm) | | Height: | 14.5000 inches (368.3000 mm) |
