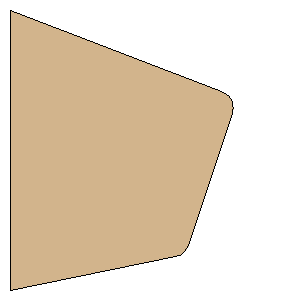

Mini Excel Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 101.6000 mm) | | Point 2: | (59.8865 mm, 89.6227 mm) | | Point 3: | (60.5333 mm, 89.4576 mm) | | Point 4: | (61.1591 mm, 89.2255 mm) | | Point 5: | (61.7571 mm, 88.9290 mm) | | Point 6: | (62.3207 mm, 88.5713 mm) | | Point 7: | (62.8436 mm, 88.1565 mm) | | Point 8: | (63.3201 mm, 87.6890 mm) | | Point 9: | (63.7449 mm, 87.1742 mm) | | Point 10: | (64.1133 mm, 86.6175 mm) | | Point 11: | (64.4212 mm, 86.0253 mm) | | Point 12: | (64.6653 mm, 85.4041 mm) | | Point 13: | (80.6312 mm, 37.5065 mm) | | Point 14: | (80.8663 mm, 36.5679 mm) | | Point 15: | (80.9561 mm, 35.6044 mm) | | Point 16: | (80.8985 mm, 34.6384 mm) | | Point 17: | (80.6948 mm, 33.6924 mm) | | Point 18: | (80.3497 mm, 32.7884 mm) | | Point 19: | (79.8712 mm, 31.9473 mm) | | Point 20: | (79.2705 mm, 31.1887 mm) | | Point 21: | (78.5615 mm, 30.5301 mm) | | Point 22: | (76.8865 mm, 29.5717 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 4.0000 inches (101.6000 mm) | | Height: | 4.0000 inches (101.6000 mm) |
