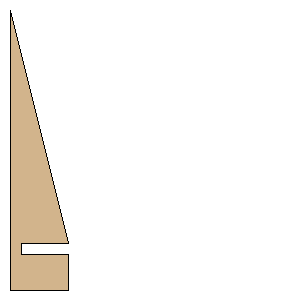

AGM-57X Heatseeker Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 304.8000 mm) | | Point 2: | (63.5000 mm, 304.8000 mm) | | Point 3: | (63.5000 mm, 266.7000 mm) | | Point 4: | (12.7000 mm, 266.7000 mm) | | Point 5: | (12.7000 mm, 254.0000 mm) | | Point 6: | (63.5000 mm, 254.0000 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 12.0000 inches (304.8000 mm) | | Height: | 12.0000 inches (304.8000 mm) |
