3D Rocketry - Dark Matter 3D Fre Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

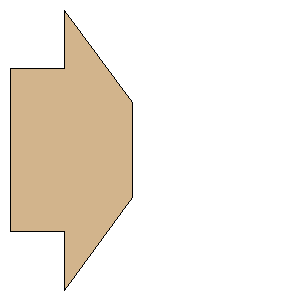

Point 1:(0.0000 mm, 76.2000 mm)
Point 2:(25.4000 mm, 76.2000 mm)
Point 3:(25.4000 mm, 103.1875 mm)
Point 4:(57.1500 mm, 60.3250 mm)
Point 5:(57.1500 mm, 15.8750 mm)
Point 6:(25.4000 mm, -26.9875 mm)
Point 7:(25.4000 mm, 0.0000 mm)
Point 8:(0.0000 mm, 0.0000 mm)
Width:3.0000 inches (76.2000 mm)
Height:5.1250 inches (130.1750 mm)
