Rocketry Parts Database >> Fins >>

LOC -IV Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

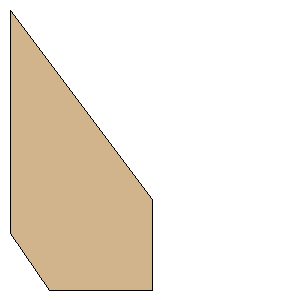

Point 1:(0.0000 mm, 155.7768 mm)
Point 2:(27.5365 mm, 195.0977 mm)
Point 3:(99.8973 mm, 195.0977 mm)
Point 4:(99.6567 mm, 131.6592 mm)
Point 5:(0.5649 mm, -0.9874 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:6.1329 inches (155.7768 mm)
Height:7.7199 inches (196.0851 mm)
