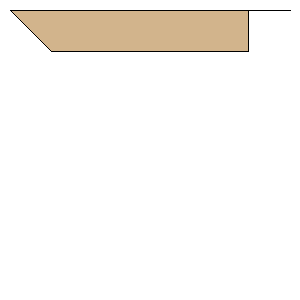

Asp (2/3 scale) Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 0.0254 mm) | | Point 2: | (15.7480 mm, 15.7480 mm) | | Point 3: | (90.6272 mm, 15.7480 mm) | | Point 4: | (90.6272 mm, 0.0254 mm) | | Point 5: | (106.3752 mm, 0.0000 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 4.1880 inches (106.3752 mm) | | Height: | 0.6200 inches (15.7480 mm) |
