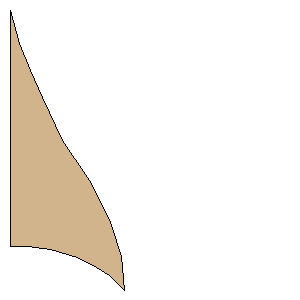

Madcow Rocketry Sensor Freeform Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Point 1:(0.0000 mm, 109.2200 mm)
Point 2:(8.7021 mm, 109.2200 mm)
Point 3:(18.6065 mm, 110.9430 mm)
Point 4:(31.1475 mm, 114.3000 mm)
Point 5:(40.1369 mm, 119.1830 mm)
Point 6:(46.2505 mm, 122.9040 mm)
Point 7:(53.1614 mm, 129.5400 mm)
Point 8:(51.5666 mm, 114.1320 mm)
Point 9:(46.5163 mm, 98.4496 mm)
Point 10:(36.7589 mm, 78.7400 mm)
Point 11:(24.4543 mm, 60.1733 mm)
Point 12:(15.0224 mm, 40.6400 mm)
Point 13:(9.4573 mm, 27.9400 mm)
Point 14:(4.5187 mm, 15.5177 mm)
Point 15:(0.0394 mm, 0.0000 mm)
Point 16:(0.0000 mm, 0.0000 mm)
Width:4.3000 inches (109.2200 mm)
Height:5.1000 inches (129.5400 mm)
