AGM-88 HARM Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |

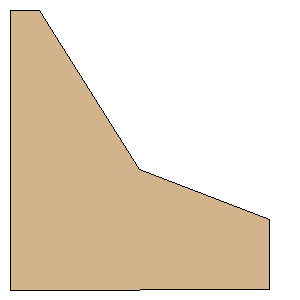

Download as PDF | Point 1: | (0.0000 mm, 177.8000 mm) | | Point 2: | (165.1000 mm, 177.8000 mm) | | Point 3: | (165.1000 mm, 133.3500 mm) | | Point 4: | (82.5500 mm, 101.6000 mm) | | Point 5: | (19.0500 mm, 0.0000 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 7.0000 inches (177.8000 mm) | | Height: | 7.0000 inches (177.8000 mm) |
