Rocketry Parts Database >> Fins >>

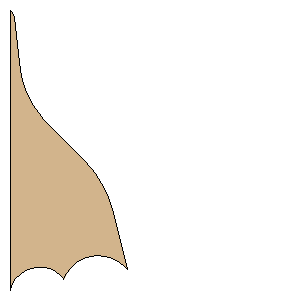

Batray - Copyright 2006 All Righ Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Point 1:(0.0000 mm, 188.4430 mm)
Point 2:(0.0013 mm, 188.4370 mm)
Point 3:(1.4634 mm, 184.4000 mm)
Point 4:(3.7403 mm, 180.7600 mm)
Point 5:(6.7305 mm, 177.6780 mm)
Point 6:(10.3009 mm, 175.2920 mm)
Point 7:(14.2924 mm, 173.7100 mm)
Point 8:(18.5273 mm, 173.0000 mm)
Point 9:(22.8168 mm, 173.1940 mm)
Point 10:(26.9700 mm, 174.2850 mm)
Point 11:(30.8018 mm, 176.2230 mm)
Point 12:(34.1415 mm, 178.9210 mm)
Point 13:(36.2204 mm, 181.0000 mm)
Point 14:(36.0284 mm, 181.5190 mm)
Point 15:(38.2162 mm, 177.0420 mm)
Point 16:(41.2505 mm, 173.0880 mm)
Point 17:(45.0102 mm, 169.8170 mm)
Point 18:(49.3452 mm, 167.3590 mm)
Point 19:(54.0824 mm, 165.8110 mm)
Point 20:(59.0327 mm, 165.2360 mm)
Point 21:(63.9985 mm, 165.6570 mm)
Point 22:(68.7815 mm, 167.0560 mm)
Point 23:(73.1909 mm, 169.3790 mm)
Point 24:(77.0506 mm, 172.5310 mm)
Point 25:(79.3750 mm, 174.8540 mm)
Point 26:(69.5042 mm, 136.1330 mm)
Point 27:(68.3742 mm, 132.1480 mm)
Point 28:(67.0335 mm, 128.2280 mm)
Point 29:(65.4860 mm, 124.3850 mm)
Point 30:(63.7359 mm, 120.6300 mm)
Point 31:(61.7884 mm, 116.9730 mm)
Point 32:(59.6488 mm, 113.4260 mm)
Point 33:(57.3233 mm, 109.9970 mm)
Point 34:(54.8185 mm, 106.6980 mm)
Point 35:(49.2999 mm, 100.5210 mm)
Point 36:(25.7989 mm, 76.8843 mm)
Point 37:(22.6138 mm, 73.4691 mm)
Point 38:(19.6678 mm, 69.8457 mm)
Point 39:(16.9743 mm, 66.0309 mm)
Point 40:(14.5457 mm, 62.0421 mm)
Point 41:(12.3933 mm, 57.8978 mm)
Point 42:(10.5269 mm, 53.6170 mm)
Point 43:(8.9553 mm, 49.2195 mm)
Point 44:(7.6855 mm, 44.7256 mm)
Point 45:(6.0736 mm, 35.5313 mm)
Point 46:(2.8372 mm, 5.0195 mm)
Point 47:(2.7184 mm, 4.2998 mm)
Point 48:(2.5152 mm, 3.5993 mm)
Point 49:(2.2305 mm, 2.9278 mm)
Point 50:(1.8682 mm, 2.2948 mm)
Point 51:(1.4334 mm, 1.7091 mm)
Point 52:(0.0000 mm, 0.0000 mm)
Width:7.4190 inches (188.4430 mm)
Height:7.4190 inches (188.4430 mm)
