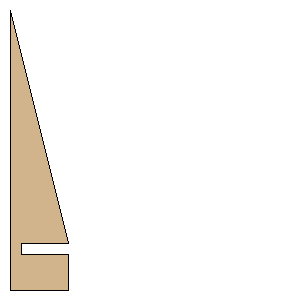

Heat Seeker (1.5") Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 220.6498 mm) | | Point 2: | (45.9740 mm, 220.6498 mm) | | Point 3: | (45.9740 mm, 193.0654 mm) | | Point 4: | (9.1948 mm, 193.0654 mm) | | Point 5: | (9.1948 mm, 183.8706 mm) | | Point 6: | (45.9740 mm, 183.8706 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 8.6870 inches (220.6498 mm) | | Height: | 8.6870 inches (220.6498 mm) |
