Rocketry Parts Database >> Fins >>

3" Black Brant X Freeform Fin Se Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

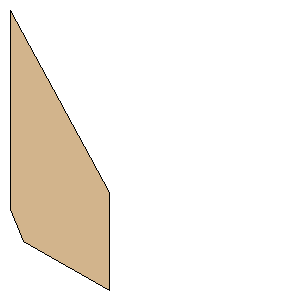

Point 1:(0.0000 mm, 190.5674 mm)
Point 2:(12.5831 mm, 220.5889 mm)
Point 3:(94.7847 mm, 267.0507 mm)
Point 4:(94.7847 mm, 174.1271 mm)
Point 5:(0.0000 mm, 0.0000 mm)
Width:7.5027 inches (190.5674 mm)
Height:10.5138 inches (267.0507 mm)
