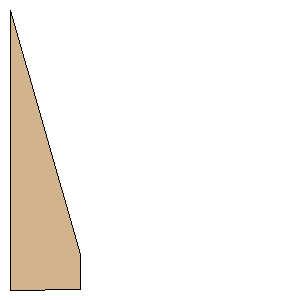

oop_shadowaero_sprintabm.rkt Tra Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 2.0000 inches (50.8000 mm) | | Tip Chord: | 0.2500 inches (6.3500 mm) | | Sweep Distance: | 1.7437 inches (44.2900 mm) | | SemiSpan: | 0.5000 inches (12.7000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (12.7000 mm, 44.2900 mm) | | Point 3: | (12.7000 mm, 50.6400 mm) | | Point 4: | (0.0000 mm, 50.8000 mm) | | Width: | 0.5000 inches (12.7000 mm) | | Height: | 2.0000 inches (50.8000 mm) |
