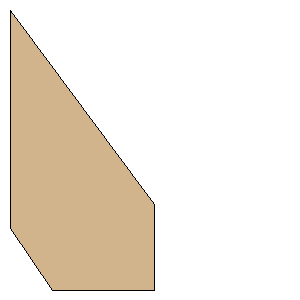

LOC/Precision LocIV Modified Fre Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 155.5750 mm) | | Point 2: | (30.1625 mm, 199.2313 mm) | | Point 3: | (103.1875 mm, 199.2313 mm) | | Point 4: | (103.1875 mm, 138.1125 mm) | | Point 5: | (0.5649 mm, -0.9874 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 6.1250 inches (155.5750 mm) | | Height: | 7.8826 inches (200.2187 mm) |
