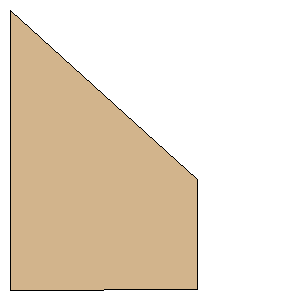

yank_4_iris.rkt Trapezoid Fin Se Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Root Chord:12.0000 inches (304.8000 mm)
Tip Chord:4.7500 inches (120.6500 mm)
Sweep Distance:7.2465 inches (184.0611 mm)
SemiSpan:8.0480 inches (204.4192 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(204.4192 mm, 184.0611 mm)
Point 3:(204.4192 mm, 304.7111 mm)
Point 4:(0.0000 mm, 304.8000 mm)
Width:8.0480 inches (204.4192 mm)
Height:12.0000 inches (304.8000 mm)
