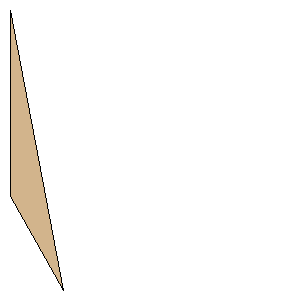

Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 5.2000 inches (132.0800 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 7.8000 inches (198.1200 mm) | | SemiSpan: | 1.5000 inches (38.1000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.1000 mm, 198.1200 mm) | | Point 3: | (38.1000 mm, 198.1200 mm) | | Point 4: | (0.0000 mm, 132.0800 mm) | | Width: | 1.5000 inches (38.1000 mm) | | Height: | 7.8000 inches (198.1200 mm) |
