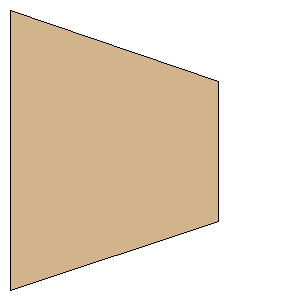

Rocket Dynamic Systems Star Ques Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 7.0000 inches (177.8000 mm) | | Tip Chord: | 3.5000 inches (88.9000 mm) | | Sweep Distance: | 1.7780 inches (45.1612 mm) | | SemiSpan: | 5.2000 inches (132.0800 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (132.0800 mm, 45.1612 mm) | | Point 3: | (132.0800 mm, 134.0612 mm) | | Point 4: | (0.0000 mm, 177.8000 mm) | | Width: | 5.2000 inches (132.0800 mm) | | Height: | 7.0000 inches (177.8000 mm) |
