Rocketry Parts Database >> Fins >>

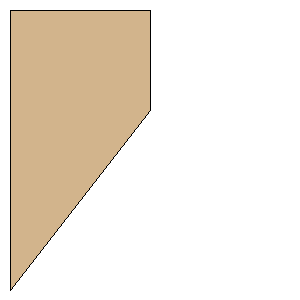

2 stage take 2.rkt Trapezoid Fin Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Root Chord:6.0000 inches (152.4000 mm)
Tip Chord:2.1500 inches (54.6100 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:3.0000 inches (76.2000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(76.2000 mm, 0.0000 mm)
Point 3:(76.2000 mm, 54.6100 mm)
Point 4:(0.0000 mm, 152.4000 mm)
Width:3.0000 inches (76.2000 mm)
Height:6.0000 inches (152.4000 mm)
