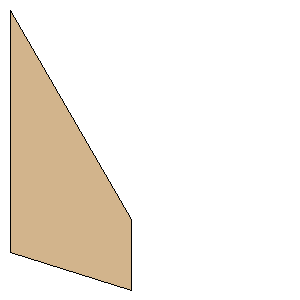

Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 9.0000 inches (228.6000 mm) | | Tip Chord: | 2.6000 inches (66.0400 mm) | | Sweep Distance: | 7.7940 inches (197.9676 mm) | | SemiSpan: | 4.5000 inches (114.3000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (114.3000 mm, 197.9676 mm) | | Point 3: | (114.3000 mm, 264.0076 mm) | | Point 4: | (0.0000 mm, 228.6000 mm) | | Width: | 4.5000 inches (114.3000 mm) | | Height: | 10.3940 inches (264.0076 mm) |
