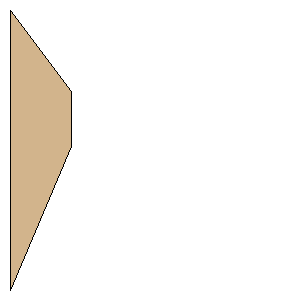

Aardvark Rockets BT-55 AIM-4C Fa Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 1.7040 inches (43.2816 mm) | | Tip Chord: | 0.3310 inches (8.4074 mm) | | Sweep Distance: | 0.4970 inches (12.6238 mm) | | SemiSpan: | 0.3720 inches (9.4488 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (9.4488 mm, 12.6238 mm) | | Point 3: | (9.4488 mm, 21.0312 mm) | | Point 4: | (0.0000 mm, 43.2816 mm) | | Width: | 0.3720 inches (9.4488 mm) | | Height: | 1.7040 inches (43.2816 mm) |
