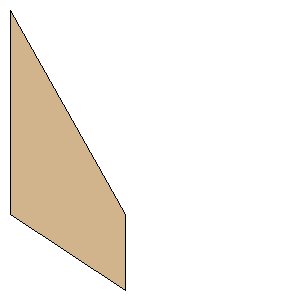

Madcow Rocketry AQM-37 Jayhawk T Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 4.7000 inches (119.3800 mm) | | Tip Chord: | 1.7500 inches (44.4500 mm) | | Sweep Distance: | 4.7000 inches (119.3800 mm) | | SemiSpan: | 2.6500 inches (67.3100 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (67.3100 mm, 119.3800 mm) | | Point 3: | (67.3100 mm, 163.8300 mm) | | Point 4: | (0.0000 mm, 119.3800 mm) | | Width: | 2.6500 inches (67.3100 mm) | | Height: | 6.4500 inches (163.8300 mm) |
