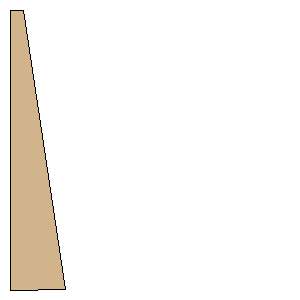

AIM-54 Phoenix Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 381.0000 mm) | | Point 2: | (76.2000 mm, 381.0000 mm) | | Point 3: | (19.0500 mm, 0.0000 mm) | | Point 4: | (0.0000 mm, 0.0000 mm) | | Width: | 15.0000 inches (381.0000 mm) | | Height: | 15.0000 inches (381.0000 mm) |
