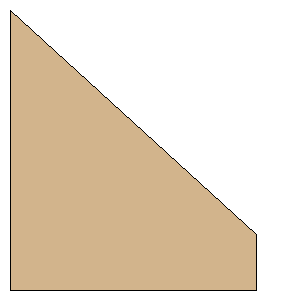

HoJo31 - Copyright 2006 All Righ Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 3.7500 inches (95.2500 mm) | | Tip Chord: | 0.7500 inches (19.0500 mm) | | Sweep Distance: | 3.0000 inches (76.2000 mm) | | SemiSpan: | 3.3000 inches (83.8200 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (83.8200 mm, 76.2000 mm) | | Point 3: | (83.8200 mm, 95.2500 mm) | | Point 4: | (0.0000 mm, 95.2500 mm) | | Width: | 3.3000 inches (83.8200 mm) | | Height: | 3.7500 inches (95.2500 mm) |
