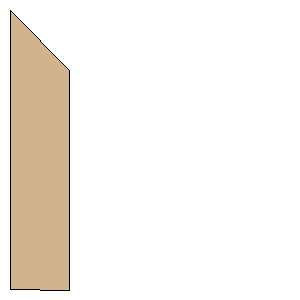

Madcow Rocketry 4" PAC-3 Patriot Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 10.6000 inches (269.2400 mm) | | Tip Chord: | 8.3000 inches (210.8200 mm) | | Sweep Distance: | 2.3000 inches (58.4200 mm) | | SemiSpan: | 2.2500 inches (57.1500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (57.1500 mm, 58.4200 mm) | | Point 3: | (57.1500 mm, 269.2400 mm) | | Point 4: | (0.0000 mm, 269.2400 mm) | | Width: | 2.2500 inches (57.1500 mm) | | Height: | 10.6000 inches (269.2400 mm) |
