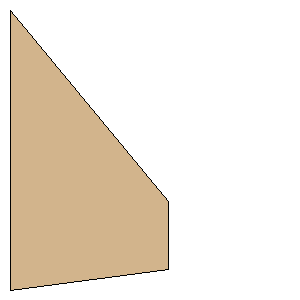

mods_loc_onyx38mm.rkt Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 5.7500 inches (146.0500 mm) | | Tip Chord: | 1.3800 inches (35.0520 mm) | | Sweep Distance: | 3.9426 inches (100.1420 mm) | | SemiSpan: | 3.2500 inches (82.5500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (82.5500 mm, 100.1420 mm) | | Point 3: | (82.5500 mm, 135.1940 mm) | | Point 4: | (0.0000 mm, 146.0500 mm) | | Width: | 3.2500 inches (82.5500 mm) | | Height: | 5.7500 inches (146.0500 mm) |
