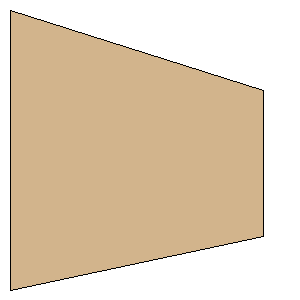

Black Brant IX Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 5.2500 inches (133.3500 mm) | | Tip Chord: | 2.7500 inches (69.8500 mm) | | Sweep Distance: | 1.5004 inches (38.1102 mm) | | SemiSpan: | 4.7500 inches (120.6500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (120.6500 mm, 38.1102 mm) | | Point 3: | (120.6500 mm, 107.9602 mm) | | Point 4: | (0.0000 mm, 133.3500 mm) | | Width: | 4.7500 inches (120.6500 mm) | | Height: | 5.2500 inches (133.3500 mm) |
