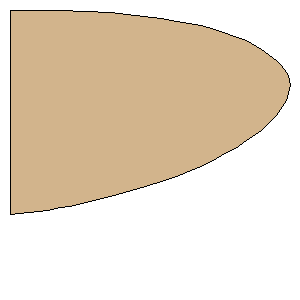

Sprint XL Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 103.1875 mm) | | Point 2: | (19.0500 mm, 100.9650 mm) | | Point 3: | (25.4000 mm, 99.8220 mm) | | Point 4: | (30.4800 mm, 99.0600 mm) | | Point 5: | (40.6400 mm, 96.5200 mm) | | Point 6: | (50.8000 mm, 93.9800 mm) | | Point 7: | (68.5800 mm, 88.9000 mm) | | Point 8: | (76.2000 mm, 86.3600 mm) | | Point 9: | (83.8200 mm, 83.8200 mm) | | Point 10: | (95.2500 mm, 79.2480 mm) | | Point 11: | (101.6000 mm, 76.2000 mm) | | Point 12: | (106.6800 mm, 73.6600 mm) | | Point 13: | (113.8343 mm, 70.1040 mm) | | Point 14: | (119.3800 mm, 66.0400 mm) | | Point 15: | (127.0000 mm, 60.9600 mm) | | Point 16: | (129.5400 mm, 58.4230 mm) | | Point 17: | (134.6200 mm, 53.3400 mm) | | Point 18: | (139.7000 mm, 45.7200 mm) | | Point 19: | (141.2875 mm, 38.1000 mm) | | Point 20: | (140.4620 mm, 33.0200 mm) | | Point 21: | (137.1600 mm, 27.9400 mm) | | Point 22: | (134.6200 mm, 25.4000 mm) | | Point 23: | (127.0000 mm, 19.8120 mm) | | Point 24: | (119.3800 mm, 15.2400 mm) | | Point 25: | (101.6000 mm, 9.1440 mm) | | Point 26: | (96.5200 mm, 7.6200 mm) | | Point 27: | (81.2800 mm, 5.0800 mm) | | Point 28: | (76.2000 mm, 4.0640 mm) | | Point 29: | (63.5000 mm, 2.5400 mm) | | Point 30: | (63.5498 mm, 2.5460 mm) | | Point 31: | (63.5374 mm, 2.5445 mm) | | Point 32: | (63.5249 mm, 2.5431 mm) | | Point 33: | (63.5124 mm, 2.5417 mm) | | Point 34: | (63.5000 mm, 2.5403 mm) | | Point 35: | (63.4875 mm, 2.5389 mm) | | Point 36: | (63.4750 mm, 2.5376 mm) | | Point 37: | (63.4625 mm, 2.5363 mm) | | Point 38: | (63.4501 mm, 2.5350 mm) | | Point 39: | (63.4376 mm, 2.5338 mm) | | Point 40: | (50.8000 mm, 1.2700 mm) | | Point 41: | (25.4000 mm, 0.0000 mm) | | Point 42: | (0.0000 mm, 0.0000 mm) | | Width: | 5.5625 inches (141.2875 mm) | | Height: | 4.0625 inches (103.1875 mm) |
