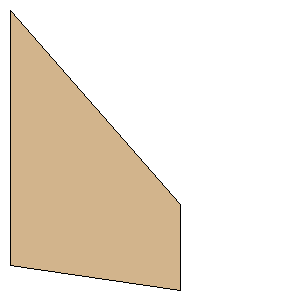

U.S. Rockets Tommy's Hawk Trapez Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 6.0000 inches (152.4000 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 4.5880 inches (116.5352 mm) | | SemiSpan: | 4.0000 inches (101.6000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (101.6000 mm, 116.5352 mm) | | Point 3: | (101.6000 mm, 167.3352 mm) | | Point 4: | (0.0000 mm, 152.4000 mm) | | Width: | 4.0000 inches (101.6000 mm) | | Height: | 6.5880 inches (167.3352 mm) |
