Rocketry Parts Database >> Fins >>

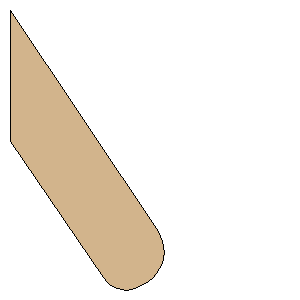

Mozzie - Copyright 2007 All Righ Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Point 1:(0.0000 mm, 115.5700 mm)
Point 2:(82.1969 mm, 235.2670 mm)
Point 3:(84.7211 mm, 238.3840 mm)
Point 4:(87.7044 mm, 241.0640 mm)
Point 5:(91.0724 mm, 243.2420 mm)
Point 6:(94.7412 mm, 244.8620 mm)
Point 7:(98.6192 mm, 245.8840 mm)
Point 8:(102.6100 mm, 246.2830 mm)
Point 9:(106.6140 mm, 246.0490 mm)
Point 10:(110.5310 mm, 245.1880 mm)
Point 11:(117.7180 mm, 241.6850 mm)
Point 12:(122.1170 mm, 238.6010 mm)
Point 13:(125.9090 mm, 235.4790 mm)
Point 14:(129.1740 mm, 231.8100 mm)
Point 15:(131.8350 mm, 227.6810 mm)
Point 16:(133.8260 mm, 223.1900 mm)
Point 17:(135.1020 mm, 218.4470 mm)
Point 18:(135.6300 mm, 213.5630 mm)
Point 19:(135.3990 mm, 208.6570 mm)
Point 20:(134.4130 mm, 203.8440 mm)
Point 21:(130.2920 mm, 194.9590 mm)
Point 22:(0.0000 mm, 0.0000 mm)
Width:5.3398 inches (135.6300 mm)
Height:9.6962 inches (246.2830 mm)
