Rocketry Parts Database >> Fins >>

MCR Hawk - Copyright 2006 All Ri Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

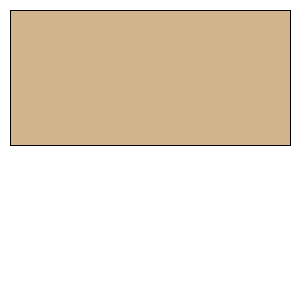

Root Chord:1.5000 inches (38.1000 mm)
Tip Chord:1.5000 inches (38.1000 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:3.0900 inches (78.4860 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(78.4860 mm, 0.0000 mm)
Point 3:(78.4860 mm, 38.1000 mm)
Point 4:(0.0000 mm, 38.1000 mm)
Width:3.0900 inches (78.4860 mm)
Height:1.5000 inches (38.1000 mm)
