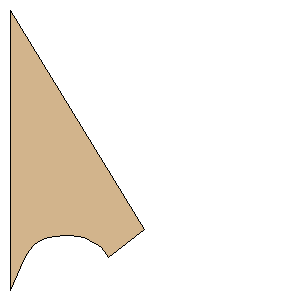

Tob-Sim II Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 125.8620 mm) | | Point 2: | (6.6839 mm, 111.6783 mm) | | Point 3: | (8.7685 mm, 108.1505 mm) | | Point 4: | (11.0135 mm, 105.4245 mm) | | Point 5: | (13.5876 mm, 103.5736 mm) | | Point 6: | (17.2163 mm, 102.1565 mm) | | Point 7: | (20.6595 mm, 101.6268 mm) | | Point 8: | (24.3228 mm, 101.4157 mm) | | Point 9: | (27.2091 mm, 101.4157 mm) | | Point 10: | (30.1947 mm, 101.7592 mm) | | Point 11: | (33.3730 mm, 102.4214 mm) | | Point 12: | (35.7568 mm, 103.4809 mm) | | Point 13: | (38.4055 mm, 104.9376 mm) | | Point 14: | (40.9995 mm, 106.8677 mm) | | Point 15: | (44.2065 mm, 111.0369 mm) | | Point 16: | (60.4929 mm, 98.6257 mm) | | Point 17: | (0.0000 mm, 0.0000 mm) | | Width: | 4.9552 inches (125.8620 mm) | | Height: | 4.9552 inches (125.8620 mm) |
