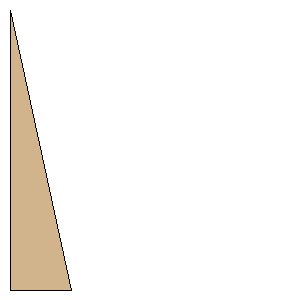

Aardvark Rockets BT-55 AIM-4C Fa Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 6.8290 inches (173.4566 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 6.8290 inches (173.4566 mm) | | SemiSpan: | 1.4930 inches (37.9222 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (37.9222 mm, 173.4566 mm) | | Point 3: | (37.9222 mm, 173.4566 mm) | | Point 4: | (0.0000 mm, 173.4566 mm) | | Width: | 1.4930 inches (37.9222 mm) | | Height: | 6.8290 inches (173.4566 mm) |
