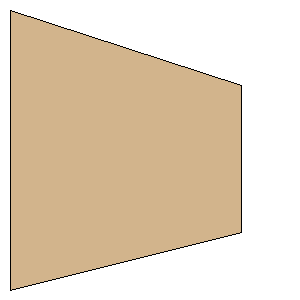

Quasar Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 10.0000 inches (254.0000 mm) | | Tip Chord: | 5.2500 inches (133.3500 mm) | | Sweep Distance: | 2.6806 inches (68.0872 mm) | | SemiSpan: | 8.2500 inches (209.5500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (209.5500 mm, 68.0872 mm) | | Point 3: | (209.5500 mm, 201.4372 mm) | | Point 4: | (0.0000 mm, 254.0000 mm) | | Width: | 8.2500 inches (209.5500 mm) | | Height: | 10.0000 inches (254.0000 mm) |
