Rocketry Parts Database >> Fins >>

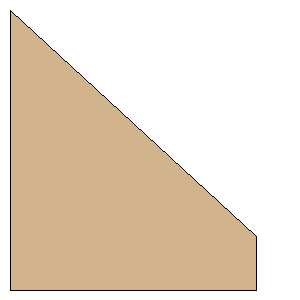

Madcow Rocketry Honest John Styl Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Root Chord:5.2500 inches (133.3500 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:4.2500 inches (107.9500 mm)
SemiSpan:4.6250 inches (117.4750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(117.4750 mm, 107.9500 mm)
Point 3:(117.4750 mm, 133.3500 mm)
Point 4:(0.0000 mm, 133.3500 mm)
Width:4.6250 inches (117.4750 mm)
Height:5.2500 inches (133.3500 mm)
